The example app (described in the own projects section on this website) is meant to show a weather forecast app for motorsport events. The idea and the purpose are pretty simple. I’ve chosen this domain, because of the possible variety of options from which you may need to fetch data (that can also be in different forms).
You can find the code in a public repository on my GitHub.
In this case for every motorsport serie you may need different implementations of the logic of the data gathering. That’s why I think, it’s a great example of a case in which the clean architecture may really make its advantages shine ✨.
The app was built using the clean architecture (and simplified MVVM for the presentation layer) to demonstrate the benefits and advantages it may bring.

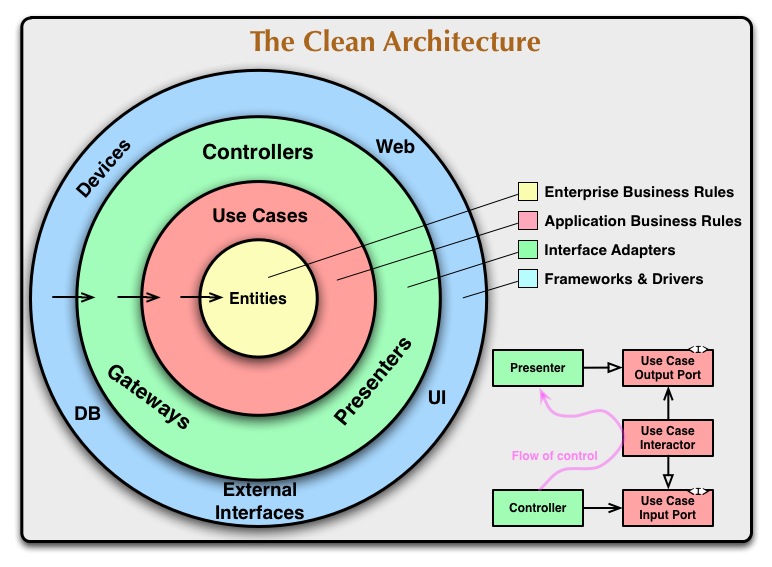

As you can see in the diagram below, it has a separate layer for data processing (data layer), a business logic layer (domain layer) that defines the main value of the app, and a presentation layer that translates all the data to the user interface and encapsulates the logic of interactions with the app.
Benefits of the architecture
Apart from the obvious advantages of using such architecture, like:
- isolated layers and components that can be developed and tested separately
- the business logic defining the app structure and interfaces
- each component of the architecture is easily interchangeable
.., in this context, you can make the possibility to swap implementations worth it - in particular for the EventsRepository. You can already see two example implementations of the repository for the two supported series. They have two different services from which they consume the content and different logic for observing the content - yet, the remaining of the application seamlessly interacts with them both in the same way.
It means that adding support of a new serie is completely isolated and can be done without interfering any other parts of the app. Adding a new serie would consist of these few steps:
- adding new implementation of
EventsRepository(data layer) - adding a new case in the
Serieenum (domain layer) - adding translation of the serie name and icon for the new
Seriecase (presentation layer)
And that’s it, the new serie will seamlessly be integrated into the app without any other dependencies or integrations required.
Dependency injection
To distribute all the components easily within the architecture, it was necessary to introduce dependency injection. It also helps to maintain the lifecycle of the components - e.g. data layer components need to be shared through the whole codebase, but presentation modules can have multiple living duplicates at one time.
Unit tests
As mentioned above, the architecture enables us to test each layer separately. I’ve created a few examples of these unit tests - especially in the domain layer (more or less testing only happy scenarios - can and should be tested much more, but it’s sufficient for the demonstration here).
Simplified areas
I’ve simplified a few areas of the architecture as they weren’t the core of the demonstration. They wouldn’t bring that much of an advantage considering the effort to support them. These areas are:
- using domain models in Views (the presentation layer should have its models)
- data layer is merged with the repository layer (may be beneficial to separate them if the project grows)
Project structure
The project structure has been built using Swift Packages - each layer of the architecture is detached in a package and project-wide utilities are separated in another package. That means the project itself contains only 4 source files that shouldn’t be changed frequently (i.e. no more conflicts in the project file 🙌🏼).
The packages currently divide the project only horizontally (by layers), but it would also make sense to separate it vertically (e.g. each networking service could have its package or target within the package).
Routing
The navigation is handled using the new NavigationStack component of SwiftUI. However, in order to make it compatible with the dependency injection (to avoid resolving all of the “stacked” screens and their dependencies over and over again), I’ve had to create a wrapper that stores the already presented screens in the stack. For more info, see the RaceWeather/Router.swift file.
Tech stack
I wanted to avoid using external dependencies, so the project mainly uses the Apple SDK, especially these frameworks:
- Swift concurrency (
async/await) for asynchronous code URLSessionfor networkingWeatherKitfor gathering the weather data
It was inevitable to use some external dependencies (wasn’t worth the effort to use a custom solution), so I ended up using a few:
Resolverfor dependency injectionSwiftGenfor strongly typed references of assets and translationsFirebasefor monitoring of crashes and app insights
Conclusion
There are obvious benefits of the clean architecture, however it’s not suitable for all cases and shouldn’t be forced into every project you’ll be working on. I hope that my example has helped to show where the benefits lie, and may make it easier for you to make decision about using the architecture in your context and environment.
